Description:
Supports 24EE ROM
Supports 25 SPI FLASH
Supports USB to TTL
Supports single chip STC serial process download
SPI PIN for Multifunction Extension
Automatic identification of 25 series chip model
R&W Ads
12M Crystal Oscillator
New original CH341A chip
500mA Auto Recovery Fuse
Output 3.3V/5V

Note about the test clip:
1. The test clip can be used with many high-performance programmers. If a programmer is encountered with a protected function, the clip cannot be played under normal voltage. You need to add a voltage of 3.3V.
Usage: First hold the chip and add a voltage of 3.3V to the pin corresponding to the 8th pin of the chip. Generally, the 3.3V power supply has two wires, the VCC is connected to the clip, and the other wire is grounded.
2. When tightening, do not press forcefully, first open the clip and tighten it on the left and right sides of the chip.
Please do not remove it directly when dismantling. Separate the clips on the left and right first, then remove them so that they do not break the tip of the clip.

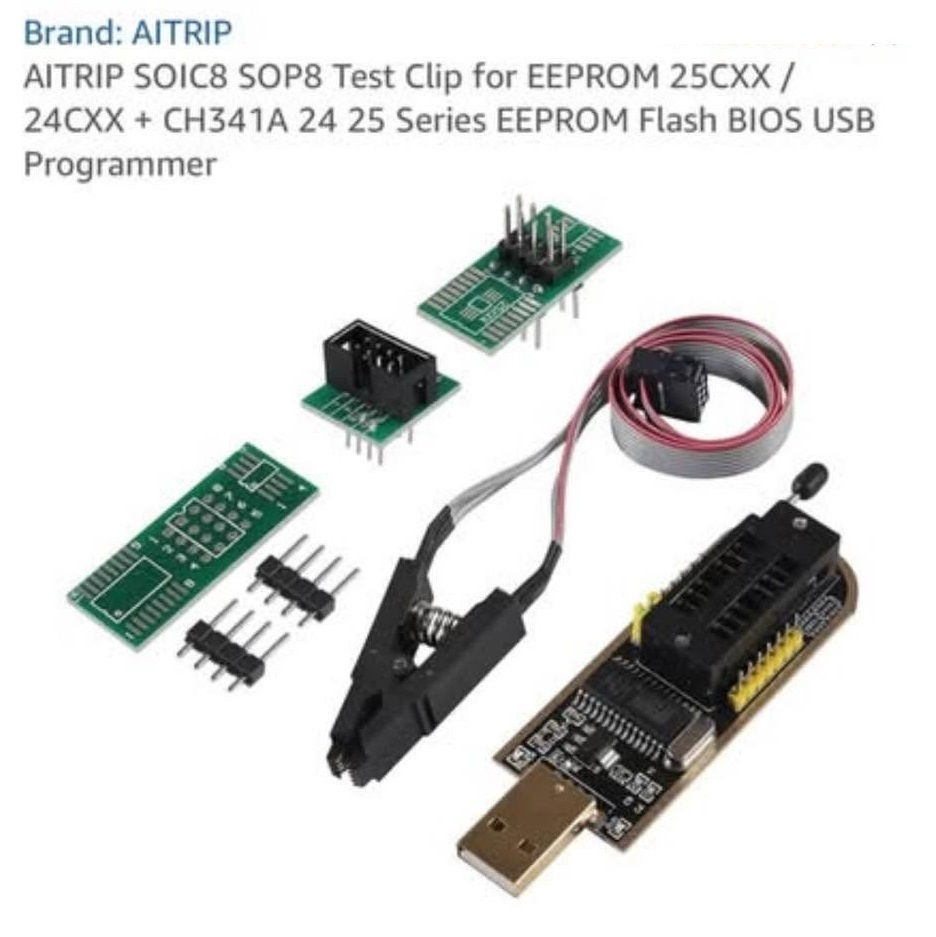

What you get:
1 x CH341A USB Programmer
1 x SOP8 SOIC8 Test Pliers
1 x Universal SOP8 SOP16 to 8 Pin Adapter
2 x 4-pin connector
